Product Description

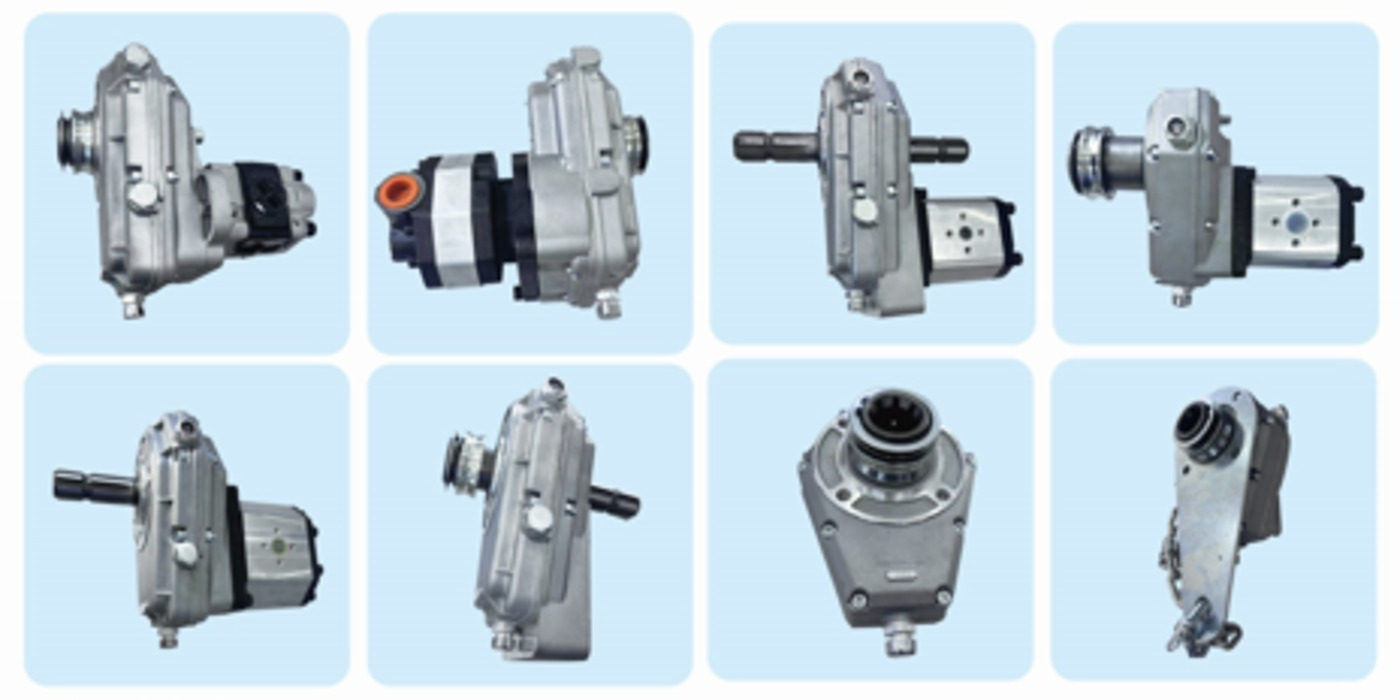

PTO gearboxes are designed for connecting pumps, motors, and other actuators.
● The gears and shafts of gearboxes are all use high strength alloy steel, they own great toughness and wear resistance through the corresponding processing and heat treatment.
● The covers and housings are made in shell-cast aluminium or cast iron, and the material density, strength and appearance are very good, you can choose the gearbox of different materials according to the power or torque you use.
| No. | Description | Quantity |
| 1 | Nut M6 | 8 |
| 2 | Cover | 1 |
| 3 | Sealing ring Φ35X52X7 | 1 |
| 4 | Bearing type 6007 | 2 |
| 5 | Bearing type 6010 | 2 |
| 6 | Peg 6X12 | 2 |
| 7 | Gasket | 1 |
| 8 | Snap ring dia.50 | 2 |
| 9 | Key 12X8 | 1 |
| 10 | Female 1 3/8" DIN9611 short | 1 |
| 11 | Female 1 3/8" DIN9611 | 1 |
| 12 | Male 1 3/8" DIN9611 | 1 |
| 13 | Female 1 3/8" DIN 9611 + tightening | 1 |
| 14 | Ball | 3 |
| 15 | Spring ring | 1 |
| 16 | Spring | 1 |
| 17 | Ring | 1 |
| 18 | Snap ring 48 | 1 |
| 19 | Pinion gear | 1 |
| 20 | Ring gear | 1 |
| 21 | Cap DIN470 Φ27 | 1 |
| 22 | Sealing ring Φ50X65X8 | 1 |
| 23 | Oil filling cap 3/8" | 1 |
| 24 | Gasket | 3 |
| 25 | Housing | 1 |
| 26 | Oil drain plug 3/8" | 1 |
| 27 | Oil level plug 3/8" | 1 |
| 28 | Socket cap screw M6X50 | 8 |
| Input torque (Nm) | Output torque (Nm) | Output speed (r/min) | Power (kW) | Input speed (r/min) | Weight (kg) | Transmission ratio |
| 178 | 119 | 540 | 1.5 | 810 | 10 | 5.8 |
| 152 | 76 | 540 | 2.0 | 1080 | 10 | 5.8 |
| 165 | 66 | 540 | 2.5 | 1350 | 10 | 5.8 |
| 180 | 55 | 540 | 3.0 | 1680 | 10 | 5.8 |
| 186 | 58 | 540 | 3.5 | 1836 | 10 | 5.8 |
| 159 | 42 | 540 | 3.8 | 2052 | 10 | 5.8 |
Hebei Gallop Import And Export Trading Co., Ltd.is a technology-based small and medium-sized enterprise. It is located in Shijiazhuang, Hebei, a national
hydraulic machinery parts base.The company is a diversified hydraulic company lintegrating hydraulic technology research and development, production and manufacturing, sales and services, and carries out artificial intelligence hydraulic system design such as electronic control and hydraulics, remote control and hydraulics, and complete hydraulic system matching, forming a one-stop service platform.
We specialize in producing solenoid valves, solenoid multi-way valves, hydraulic valve groups, hydraulic multi-way valve groups, hydraulic pump stations, and other hydraulic products and accessories; We also cooperate in the production of hydraulic cylinders, hydraulic motors, gear pumps, steering gears, and other hydraulic products. We design hydraulic systems and hydraulic pump stations by ourselves. Our self-produced and cooperatively produced hydraulic products have been matched with agricultural machinery, engineering machinery, marine machinery, factory equipment, etc.
The company has a plant of 16, ooo square meters and more than 50 employees, including 1 engineer and 3 technicians. It adopts a modern office
and intelligent management system, has a dust-free constant temperature workshop, advanced testing, processing, cleaning, and testing equipment, and
an excellent service team.
The company has strong technical strength and processing capacity. After decades of development, the company has a high-quality product development
technical support, production and sales team, but also has rich customer service experience. The company's products closely rely on talent and technical advantages to sell well in Russia, Europe, the Middle East, South America, Asia and other markets, and have been unanimously recognized by customers!
A team specializing in the research and development of mechanical equipment customized according to your specific needs
