Product Description
● High reliability and low maintenance costs.
● Manufactured from corrosion-resistant materials capable of withstanding extreme environments.
● Available in multiple configurations for industrial and agriculture use.
● Energy Storage: When system pressure rises, surge oil enters the accumulator, compressing the ammonia and storing energy.
● Standby: When system pressure is stable, the accumulator maintains energy storage.
● Energy Release: When system pressure drops, the compressed ammonia expands, forcing hydraulic oil into the system to replenish flow or maintain pressure.

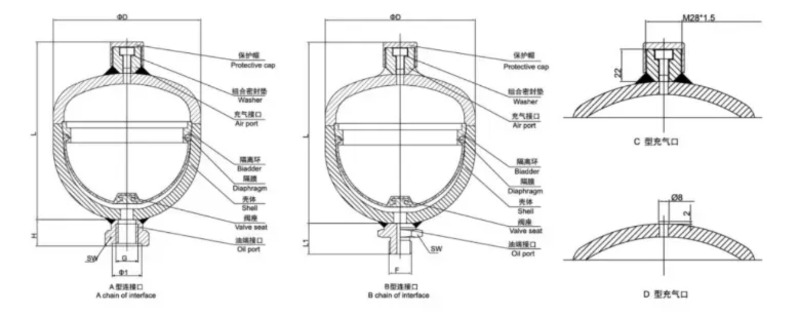

| Nominal Volume (L) | Compression Ratio P2:P0 | Pressure (Mpa) | Length (mm) | ΦD | Weight (ΦD) | Connection | Oil End Connection | |||||
| G | φ1 | H | SW | F | G1 | |||||||
| 0.075 | 8:1 | 22-33 | 92 | 63 | 0.85 | C | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 0.16 | 8:1 | 22-33 | 107 | 73 | 1.1 | C | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 0.25 | 8:1 | 22-33 | 107 | 84 | 1.4 | C/D | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 0.32 | 8:1 | 22-33 | 115 | 93 | 1.75 | C/D | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 0.5 | 8:1 | 22-33 | 132 | 104 | 2.35 | C | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 0.75 | 8:1 | 22-33 | 148 | 123 | 3.7 | C | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 1.0 | 4:1 | 22-33 | 162 | 138 | 4.6 | C | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 1.4 | 4:1 | 22-33 | 173 | 153 | 6.3 | C | G1/2 | 28 | 25 | 32 | M18x1.5 | 25 |
| 2.0 | 4:1 | 22-33 | 200 | 173 | 8.7 | C | G3/4 | 35 | 30 | 41 | M33x1.5 | 30 |
| 2.8 | 4:1 | 22-33 | 256 | 173 | 11.2 | C | G3/4 | 35 | 30 | 41 | M33x1.5 | 30 |
| 3.5 | 4:1 | 22-33 | 292 | 173 | 12.8 | C | G3/4 | 35 | 30 | 41 | M33x1.5 | 30 |
