Product Description
A diaphragm accumulator is a hydraulic component that uses a flexible diaphragm to separate nitrogen gas from hydraulic fluid.
● Model: 0.075L - 3.5L
● Pressure: 100 - 330 bar
The product is CE marked and conforms with applicable EU Directives.
● Superior Seal: The larger welded contact area minimizes gas permeation, ensuring excellent pressure stability and longer gas charge life with less maintenance.
● Rapid Response & Long Life: Ideal for absorbing high-frequency pulses and shocks. Its frictionless operation delivers a long service life.
● Compact Design: Its small size makes it perfect for space-limited applications

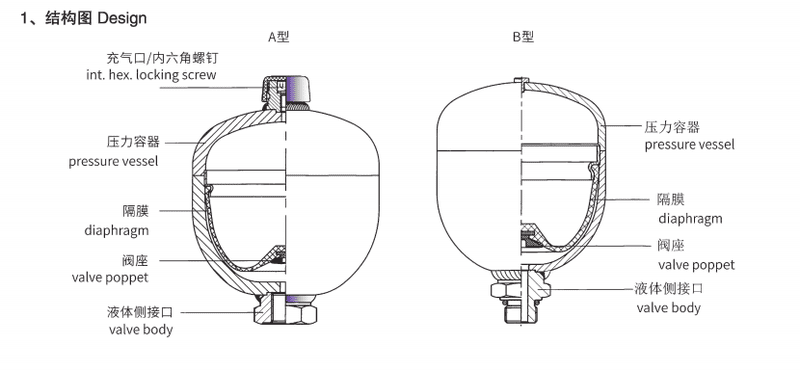

| StructureA、B | ||||||||||||||||
| Nom. Volume L |
Bar Nom.Pressure |
Max. flow rate L/min |
ØD | H | Dimension,mm | Weight (kg) |
||||||||||
| AK | AB | |||||||||||||||
| Alloy steel | S.S | Hex. SW | AK | ØC | L1 | L3 | Hex. SW | AB | L2 | M | L3 | |||||
| 0.075 | 250 | ----- | 38 | 62 | 67 | 30 | G1/2 | 29 | 16 | 21 | 30 | G1/2 | 14 | M16X1.5 M18X1.5 |
26 | 0.7 |
| 0.16 | 210 | 160 | 74 | 73 | 12 | 24 | 0.8 | |||||||||
| 0.25 | 100 | 250 | 83 | 73 | 36 | 41 | 19 | 25 | 36 | 0.9 | ||||||
| 0.25 | 250 | 160 | 88 | 84 | 15 | 28 | 1.0 | |||||||||
| 0.32 | 140 | ----- | 90 | 64 | 1.3 | |||||||||||
| 0.5 | 250 | 160 | 95 | 106 | 110 | 19 | 25 | G1/2 | 18 | 33 | 1.8 | |||||
| 0.75 | 100 | 160 | 121 | 122 | M22X1.5 | 2.4 | ||||||||||
| 0.75 | 250 | ----- | 127 | 129 | 3.0 | |||||||||||
| 1.0 | 250 | ----- | 138 | 140 | 4.5 | |||||||||||
| 1.0 | 330 | ----- | 147 | 139 | 5.0 | |||||||||||
| 1.4 | 210 | ----- | 151 | 158 | 5.5 | |||||||||||
| 1.4 | 330 | ----- | 162 | 184 | 6.8 | |||||||||||
| 2.0 | 210 | ----- | 150 | 167 | 180 | 46 | G3/4 | 46 | 19 | 36 | 46 | G3/4 | M33X1.5 | 6.7 | ||
| 2.0 | 250 | ----- | 172 | 184 | 7.2 | |||||||||||
| 2.0 | 330 | ----- | 178 | 190 | 8.1 | |||||||||||
| 2.8 | 250 | ----- | 168 | 252 | 10.0 | |||||||||||
| 2.8 | 330 | ----- | 180 | 262 | 11.0 | |||||||||||
| 3.5 | 250 | ----- | 168 | 277 | 11.5 | |||||||||||
| 3.5 | 330 | ----- | 180 | 298 | 14.0 | |||||||||||
Established in 2005, Hebei Ding'an Hydraulic Machinery Co., Ltd. is a professional manufacturer specializing in the research, development, and production of high-quality hydraulic components.
We take pride in our modern facility and rigorous standards:
● Certified Quality: Our operations are fully ISO and CE certified, ensuring international standards for every product.
● Advanced Manufacturing: Equipped with CNC machining centers and precision testing equipment to guarantee reliability and performance.
● Global Reach: Our products are trusted by clients in over 20 countries, including Russia, Europe, India, and Southeast Asia.
We are dedicated to providing not just products, but complete solutions and professional after-sales support. Choose Ding'an for durability and expertise you can count on.
Use sturdy wooden cartons for packaging to ensure the safety of goods on the road
1.Dingan Hydraulic Machinery Co., Ltd. has quality control from the beginning to the end. Each piece of goods is strictly tested before packaging.
2.We have excellent service: we treat our customers as friends.
3. We have good quality: We have a strict quality control system. Enjoy a good reputation in the market.
4.We can produce any customized design for you.
5. Our prices are cheap and discounted
