Product Description
Oil is not compressible in practice, so it cannot store pressure energy.
Liquid-gas accumulator is to use the comprehensibility of gas to store oil.

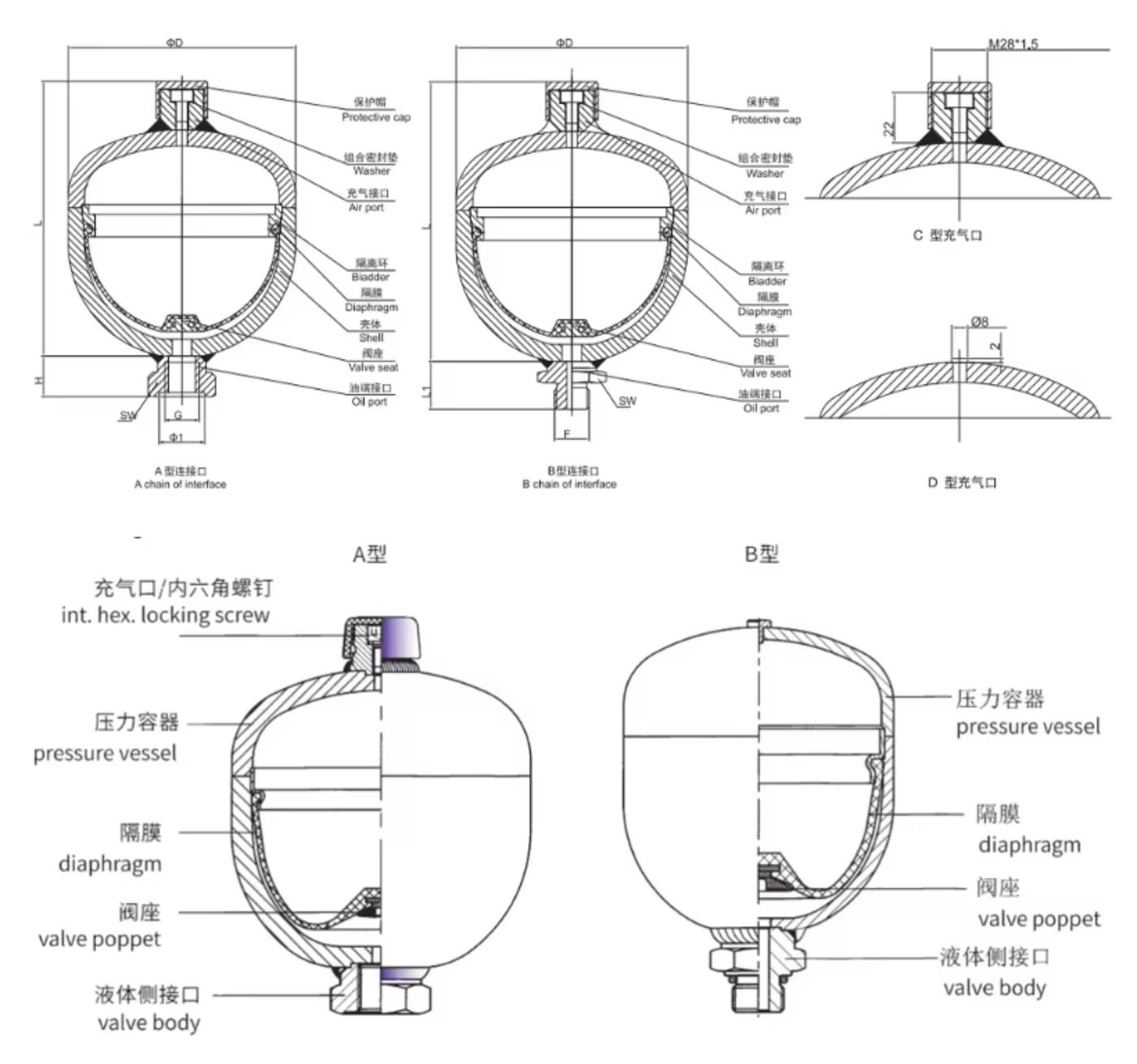

Diaphragm accumulators are based on this principle and use nitrogen as the compressible medium. Diaphragm accumulator by the liquid part and the gas part of the composition, the diaphragm used as a gas sealing isolation parts. The liquid part is connected to the hydraulic circuit, so when the pressure rises, the gas is compressed and the oil is sucked into the diaphragm accumulator. When the pressure drops, the gas expands and the fluid is pressed into the system circuit. When the accumulator is completely emptied, the valve seat at the bottom of the diaphragm closes the hydraulic outlet to prevent damage to the diaphragm.
| Model | Max Working Pressure (BAR) | Max Working Pressure / Charging Pressure | Volume (L) | Weight (KG) | Diameter D (mm) | Overall Height H (mm) | Fluid Connection Thread (O-Ring） |
Max Flow Rate (L/min) | W | SW |
| MDA |
100 210 330 |
8:1 | 0.16 | 1.2 | 75 | 116 | G1/2 | 38 | 17 | 36 |
| 0.32 | 2.1 | 95 | 137 | 95 | ||||||
| 0.5 | 2.9 | 111 | 152 | 21 | ||||||
| 0.75 | 4.2 | 125 | 156 | |||||||
| 1.0 | 5.4 | 142 | 181 | |||||||
| 1.4 | 8.0 | 157 | 210 | |||||||
| 2.0 | 10.0 | 173 | 231 | G3/4 | 150 | 46 | ||||
| 4:1 | 2.5 | 10.6 | 173 | 239 | ||||||
| 2.8 | 11.2 | 173 | 267 |
