Product Description
The KM6004 is a PTO speed increaser (aluminum multiplier) designed to connect gear pumps to the power take-off (PTO) of agricultural or forestry tractors.
● Lightweight & Durable: Built with aluminum alloy construction for long-lasting performance, easy operation, and installation.
● PTO Shaft Configuration: Features a 1 3/8” DIN 9611 internal spline input/output interface for high compatibility with standard equipment.
● Gear Ratios: Offers a wide range of ratios from 1:1.5 to 1:3.8, providing flexibility to meet varying speed and torque requirements.
● Performance: Supports a maximum input torque of 186 Nm, with output torque ranging from 42 Nm to 119 Nm depending on the gear ratio.
● Power & Weight: Rated power of 10 kW and weighing only 6 kg, delivering an excellent power-to-weight ratio.
● Installation Flexibility: Supports 4-direction mounting for easy adaptation to different configurations.
● Easy Maintenance: Utilizes standardized components such as bearings, gears, and seals for simplified maintenance and part replacement.

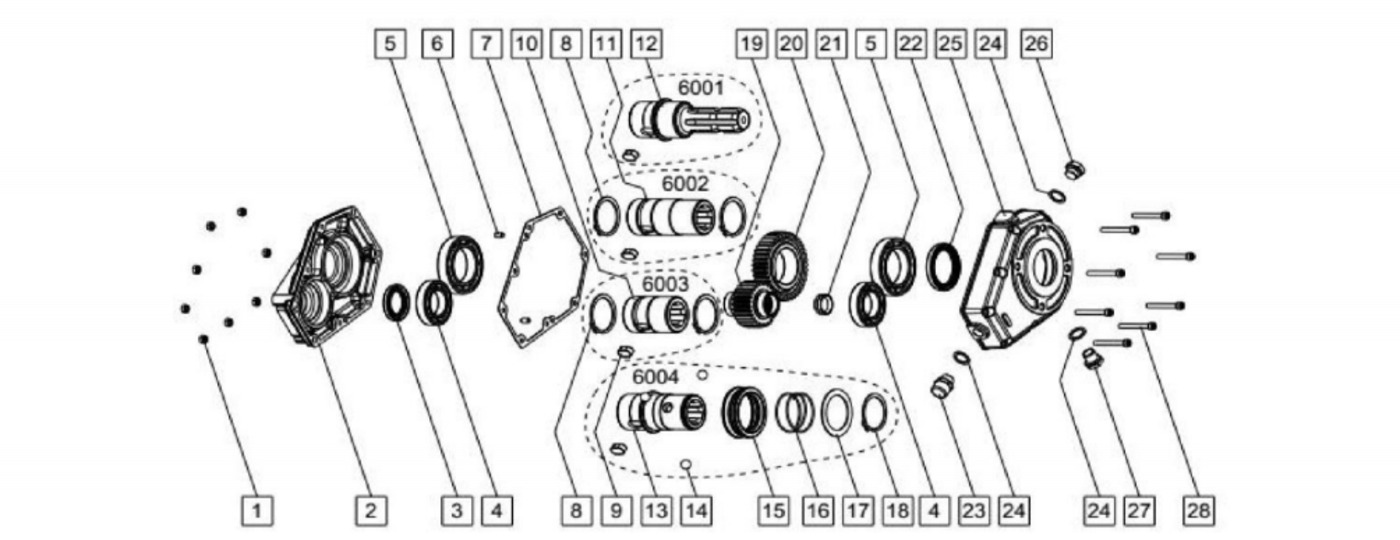

| No. | Description | Quantity |
| 1 | Nut M6 | 8 |
| 2 | Cover | 1 |
| 3 | Sealing ring Φ35X52X7 | 1 |
| 4 | Bearing type 6007 | 2 |
| 5 | Bearing type 6010 | 2 |
| 6 | Peg 6X12 | 2 |
| 7 | Gasket | 1 |
| 8 | Snap ring dia.50 | 2 |
| 9 | Key 12X8 | 1 |
| 10 | Female 1 3/8" DIN9611 short | 1 |
| 11 | Female 1 3/8" DIN9611 | 1 |
| 12 | Male 1 3/8" DIN9611 | 1 |
| 13 | Female 1 3/8" DIN 9611 + tightening | 1 |
| 14 | Ball | 3 |
| 15 | Spring ring | 1 |
| 16 | Spring | 1 |
| 17 | Ring | 1 |
| 18 | Snap ring 48 | 1 |
| 19 | Pinion gear | 1 |
| 20 | Ring gear | 1 |
| 21 | Cap DIN470 Φ27 | 1 |
| 22 | Sealing ring Φ50X65X8 | 1 |
| 23 | Oil filling cap 3/8" | 1 |
| 24 | Gasket | 3 |
| 25 | Housing | 1 |
| 26 | Oil drain plug 3/8" | 1 |
| 27 | Oil level plug 3/8" | 1 |
| 28 | Socket cap screw M6X50 | 8 |
| Input torque (Nm) | Output torque (Nm) | Output speed (r/min) | Power (kW) | Input speed (r/min) | Weight (kg) | Transmission ratio |
| 178 | 119 | 540 | 1.5 | 810 | 10 | 5.8 |
| 152 | 76 | 540 | 2.0 | 1080 | 10 | 5.8 |
| 165 | 66 | 540 | 2.5 | 1350 | 10 | 5.8 |
| 180 | 55 | 540 | 3.0 | 1680 | 10 | 5.8 |
| 186 | 58 | 540 | 3.5 | 1836 | 10 | 5.8 |
| 159 | 42 | 540 | 3.8 | 2052 | 10 | 5.8 |
