Industrial Hydraulic Solenoid High Pressure DSG-01 Series Solenoid Directional Valve for Construction Machinery Parts

Hydraulic Solenoid High Pressure DSG-01 Directional Valve for Construction Machinery Parts

A solenoid valve is an automated actuator that uses electromagnetic force to control the flow direction, flow rate, and switching of fluids such as liquids.

Next Product Inquire Now

Product Description

Product Features

● Can be used as a direct replacement for Yuken products

● A wide variety of models are available for selection

Product Working Principle:

The solenoid valve consists of an electromagnet and a valve body. When powered on, it generates a magnetic field to drive the valve core to move, thereby achieving control of the fluid. It is widely used in industrial control, automation systems and other fields.

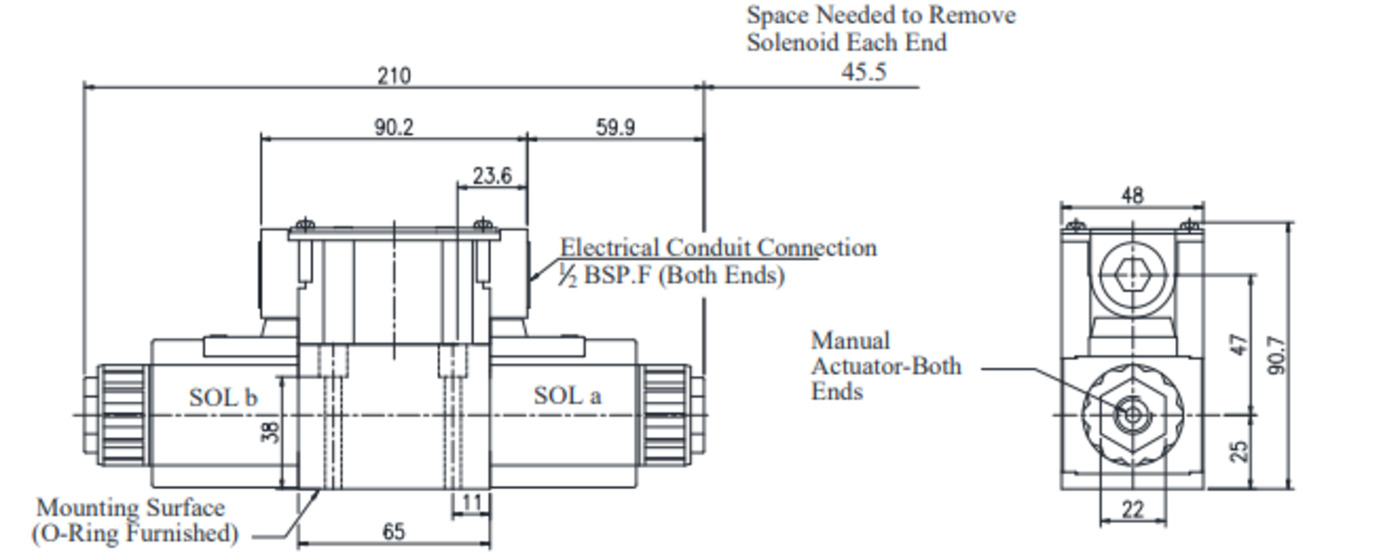

Product Drawings

Industrial Hydraulic Solenoid High Pressure DSG-01 Series Solenoid Directional Valve for Construction Machinery Parts

Product Specifications

Type	Pattern	Maximum Flow (L/min)	Maximum Working Pressure (MPa)	Allowable Back Pressure of Cylinder (MPa)	Maximum Commutation Frequency (min⁻¹)
DSG-01-3C--70	Standard	100	35	21	300
DSG-01-2D2-*-70	Standard	100	35	21	120 (Only for R solenoid)
DSG-01-2B--70	Standard	100	35	21	120
S-DSG-01-3C--70	No impact type	63	25	21	120
S-DSG-01-2B2-*-70	No impact type	63	25	21	120
