Hydrualic Distributor Replacement for HYDROSILA Valve P160-3/1

Widely used in the hydraulic system control of construction machinery and agricultural machinery, it primarily relies on the opening and closing of control valves to direct the flow of hydraulic fluid toward the hydraulic cylinders, thereby controlling the mechanical movements.

Next Product Inquire Now

Product Description

Product Features

● Rated flow rate 160 L/min

● Used to control hydraulic cylinders in the tractor's hydraulic system

Product Working Principle

The core operating principle of a hydraulic distributor involves an internal spool valve or spool that moves under the action of a mechanical handle, thereby controlling the flow direction of hydraulic fluid.

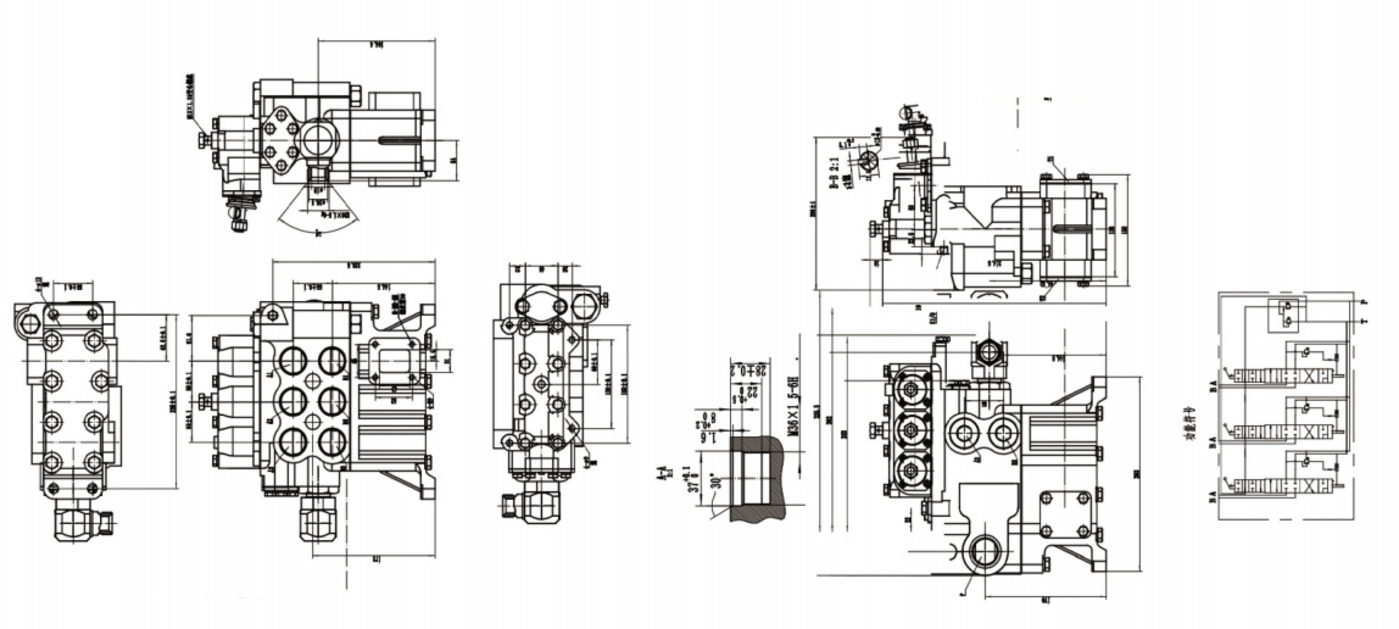

Product Drawings

P160 Hydrualic Distributor Replacement for HYDROSILA Valve P160-3/1 Series Closed Center

Product Specifications

Hydraulic distributor type	Monoblock, closed center
Nominal bore	25 mm
Rated flow	160 L/min
Maximum flow	200 L/min
Relief-valve type	Differential pilot-operated relief valve
Rated pressure	16 bar
Maximum working pressure	19 bar
Number of spools	3
Spool actuation method	Manual (hand-operated)
Weight	34–35 kg
