Discover unparalleled efficiency in your agricultural endeavors with the DF50 Series Directional Control Valve. Engineered for minimal pressure loss and exceptional reliability, this advanced valve enhances farming productivity to new heights. Its effortless installation and user-friendly features simplify integration, while the adaptable design ensures seamless compatibility with various applications. Upgrade your equipment to DF50 Series for a transformative agricultural experience, where precision meets reliability, paving the way for a future of efficient farming practices.
Product Features
● Manual, pneumatic, electro-hydraulic, and remote control kits
Product Working principle:
A hydraulic valve is a component operated by pressurized oil and is controlled by the pressure oil of a pressure regulating valve.

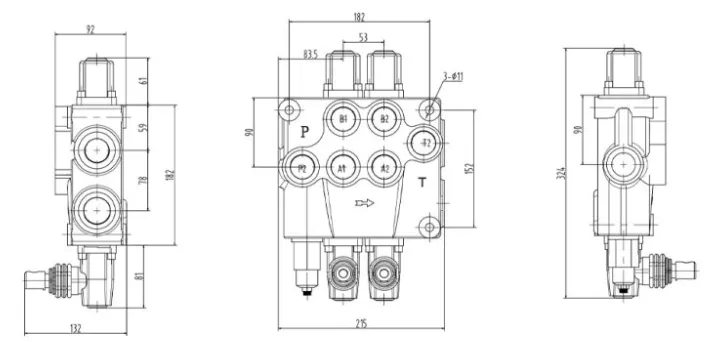

Product Drawings
| Control Method |
joystick,manual |
Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
50 L/min |
Viscosity Range |
12 CST-400CST |
| Operating Pressure |
250 bar(25MPa) |
Internal Leakage |
15 cc/min at 160bar,50℃ |
| Ambient Temp |
-40℃ to +80℃ |
Valve Structure |
Monoblock,Sectional |
| Valve Surface |
Phosphating treating |
Valve Sections |
1-10 Section |
